The pneumatic hoist is driven by compressed air to drive the pneumatic motor to rotate, and the gearbox increases the torque after driving the sprocket to rotate and drive the chain to complete the lifting work. It is mainly composed of air motor, planetary reducer, manual contro...
400-966-5869
The pneumatic hoist is driven by compressed air to drive the pneumatic motor to rotate, and the gearbox increases the torque after driving the sprocket to rotate and drive the chain to complete the lifting work. It is mainly composed of air motor, planetary reducer, manual control valve, main control valve, suspension assembly, brake mechanism, lifting chain, and other parts. The pneumatic hoist can be combined with explosion-proof hand trolley or pneumatic trolley to form a mobile pneumatic lifting tool. The lifting mechanism realizes the lifting and lowering of heavy objects by controlling the main control valve, and achieves the lifting and lowering positioning braking by opening and closing the brake. The chain pneumatic hoist ensures the safety of lifting operation, and the lifting mechanism of the pneumatic hoist can be fixed as a whole.
Characteristic advantages of mine pneumatic hoist:
1. Explosion-proof safety
– Powered by compressed air, 100% working cycle. The pneumatic hoist can run continuously because the air motor does not heat up. The air pressure of the operation will keep dust, dirt, moisture and corrosive gases out of the shell, no electrical danger, because no electricity is used, free from electric shock in the explosive environment, the use of aerodynamic power is a clear advantage, pneumatic hoist no spark operation, safe explosion-proof.
2. Adjustable speed
– Stepless speed adjustment when lifting or falling; Fast running speed, 3 times that of electric hoist; 5 to 10 times the hand hoist.
3. Overload protection, cut-off protection
Avoid sudden interruption of air source caused by sudden drop of load. Make the product have a further quality assurance, to avoid the overload of the load caused damage to the product.
4. Easy to operate
The pull rod control operation is simple and easy to control when lifting or lowering, so that you can quickly respond to the action of the handle output.
5. Clean, environmentally friendly, safe and reliable
The internal lubrication system eliminates air pollution. It is suitable for working in special or harsh environment such as damp, high dust, etc.
6. Easy handling
In addition to paying attention to the beauty of the appearance, the pneumatic hoist is smaller than the electric hoist, light weight, easy to carry, and the product structure design is solid, making the operation reliable and the maintenance amount small.
7. Low failure rate, durable
The pneumatic hoist is durable, and the service life is significantly longer than that of the general similar products.
|

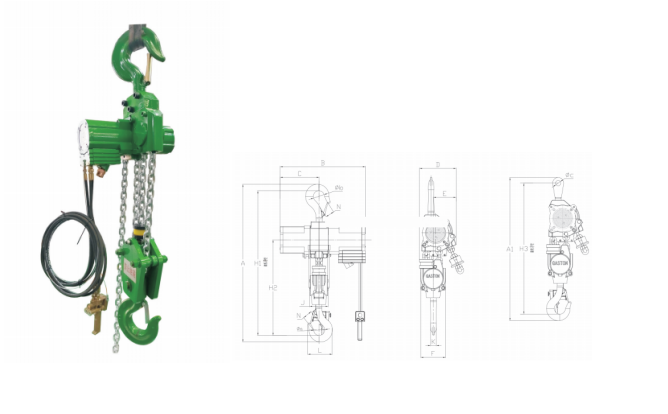

Model number |
unit |
HQ16-3 |
HQ20-4 |
HQ30-2 |
HQ50-4 |
HQ75-3 |
HQ100-4 |
|
trolley |
|
|
|
|
|
|
|
|
A |
mm |
1350 |
1195 |
1370 |
1610 |
2535 |
2610 |
|
B |
mm |
558 |
559 |
900 |
955 |
1535 |
1535 |
|
C |
mm |
246.5 |
247 |
450 |
535 |
820 |
820 |
|
D |
mm |
386 |
472 |
445 |
445 |
600 |
600 |
|
E |
mm |
195 |
127 |
270 |
270 |
405 |
365 |
|
F |
mm |
262 |
365 |
310 |
350 |
450 |
450 |
|
H1 Minimum clearance |
mm |
1163 |
1117 |
1260 |
1485 |
1935 |
1935 |
|
H2 |
mm |
675 |
630 |
825 |
950 |
1250 |
1250 |
|
φa |
mm |
95 |
102 |
126 |
120 |
315 |
355 |
|
φb |
mm |
95 |
102 |
126 |
120 |
315 |
355 |
|
N |
mm |
88 |
95 |
113 |
122 |
250 |
280 |
Parameters:
|
Mold |
unit |
H02-2 |
H03-1 |
HQ3-2 |
H06-2 |
H010-2 |
|||||
|
Air Pressure |
Mpa |
0.4 |
0.63 |
0.4 |
0.63 |
0.4 |
0.63 |
0.4 |
0.63 |
0.4 |
0.63 |
|
Capacity |
(Tons) |
2 |
3 |
3 |
6 |
10 |
|||||
|
Vumber of chains |
The root |
2 |
1 |
2 |
2 |
2 |
|||||
|
Hotor output power |
(KW) |
1.5 |
2 |
1.8 |
3.5 |
1.5 |
2 |
1.8 |
3.5 |
1.8 |
3.5 |
|
Lifting height |
(M) |
2~50 (The standard height is 3 meters) |
|||||||||
|
Pull load lifting speed |
(m/min) |
2.5 |
2.7 |
2.5 |
5 |
2.5 |
5 |
1.2 |
2.5 |
0.8 |
1. 5 |
|
Pull load descent speed |
( m³/min) |
5 |
5.5 |
7.5 |
11 |
8 |
11 |
3.5 |
5.5 |
2.5 |
3.5 |
|
Pull load gas consuaption一inerease |
(m³/min) |
0.7 |
1.2 |
2 |
4 |
1.8 |
2.6 |
2 |
4 |
2 |
4 |
|
Chain size |
mm |
9*27 |
13*36 |
9*27 |
13*36 |
16*45 |
|||||
|
Chain woight |
kg/m |
1.8 |
3.8 |
1.8 |
3.8 |
5.8 |
|||||
|
Standard weight |
(kg) |
38 |
86 |
68 |
98 |
115 |
|||||
|
(3 metors lifting height) |
|||||||||||
|
Cont 1l 0r trachea length |
(m) |
2~50 (The standard height is 3 meters) |
|||||||||
|
Full load noise一inereased |
(DB) |
74 |
78 |
74 |
78 |
74 |
78 |
74 |
78 |
74 |
78 |
|
Tracheal joint |
(in) |
G3/4 |
G3/4 |
G3/4 |
G3/4 |
G3/4 |
|||||
|
Air tube size (inner dianeter 6) |
(mm) |
14 |
19 |
19 |
19 |
19 |
|||||
|
Minimum clearance motor power |
kw |
0. 25 |
2 |
0.25 |
2 |
3.5 |
|||||
|
Load operating speed |
m/min |
13 |
13 |
13 |
10 |
10 |
|||||
|
Motor air consumption |
m/mim |
0.45 |
2.6 |
0. 45 |
2.6 |
4 |
|||||
|
Gas pipe joint |
in |
G1/2 |
G3/4 |
G1/2 |
G3/4 |
G3/4 |
|||||
|
Trachea size (inside diameter) |
mm |
G1/2 |
G1/2 |
G1/2 |
G1/2 |
G1/2 |
|||||
|
Weight (car) |
kg |
40 |
75 |
49 |
75 |
89 |
|||||
Parameters:
|
Mold |
unit |
HQ16-3 |
HQ20-4 |
HQ30-2 |
HQ50-4 |
HQ75-3 |
HQ100-4 |
|
Air |
Mpa |
0.63 |
|||||
|
Capacity |
(Tons) |
16 |
20 |
30 |
50 |
75 |
100 |
|
Number of chains |
The root |
3 |
4 |
2 |
4 |
3 |
4 |
|
Motor output power |
(KW) |
3.5 |
3.5 |
6. 3 |
6.3 |
9 |
9 |
|
Lifting height |
(M) |
2~10 (The standard height is 3 meters) |
|||||
|
Full load lifting speed |
(m/min) |
1 |
0.7 |
1 |
0.7 |
0. 55 |
0.4 |
|
Empty lifting speed |
(M/min) |
2 |
1.4 |
2.3 |
1.2 |
1.3 |
1 |
|
Full load descent speed |
(m³/min) |
1.6 |
1.6 |
2.8 |
1.5 |
1. 2 |
1 |
|
Pull |
(m³/min) |
4 |
4 |
6. 5 |
4 |
7.6 |
7.6 |
|
Fu1l load gas consumption 一decrease |
(m³/min) |
5.5 |
5.5 |
5.5 |
5.5 |
6 |
6 |
|
Chain size |
mm |
13*36 |
13*36 |
23.5*66 |
23.5*66 |
32*90 |
32*90 |
|
Chain weight |
kg/m |
3.8 |
3.8 |
12.2 |
12.2 |
21.3 |
21.3 |
|
Standard weight |
(kg) |
210 |
310 |
520 |
935 |
1750 |
1800 |
|
Controller |
(m) |
2~5 (The standard is 3 meters) |
|||||
|
Full load noise一increased |
(DB) |
78 |
78 |
78 |
78 |
78 |
78 |
|
Full load noise – reduced |
(DB) |
80 |
80 |
82 |
82 |
85 |
85 |
|
Tracheal joint |
(in) |
G3/4 |
G3/4 |
G11/2 |
G11/2 |
G11/2 |
G11/2 |
|
Air tube size (inner diameter $) |
(mm) |
19 |
19 |
35 |
35 |
35 |
35 |
