Product introduction

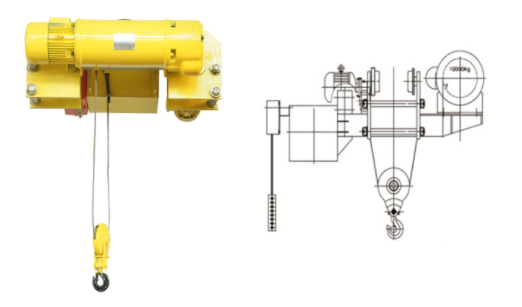

Low headroom electric hoist refers to reducing the size distance between the bottom of the track of the electric hoist and the limit position on the hook, and placing the hoist host on the side of the running track to achieve an electric hoist with an effective lifting stroke. The product has the characteristics of compact structure, smooth operation, etc., and a wide range of application, especially in the case of unchanged height in the new plant can effectively increase the lifting height, or reduce the building height in the case of unchanged original lifting height, reduce construction costs.

Product advantages:

1, the leading technical design to ensure the ultimate size of product optimization, in the same workshop and working area, the application of low headroom electric hoist can cover a larger range, reduce the blind area
2, if the low headroom electric hoist parameters are used in the design stage of the plant, the requirements for the height of the plant can be greatly reduced, saving investment for customers, increasing efficiency and reducing costs
3, low headroom structure types are diverse, can be made into 2/1 magnification form, can be made into 4/2 magnification form, can also be made into the hoist host and running track vertical form, the upper limit size is also more than the ordinary CD/MD hoist 200~500MM
4, the whole machine is optimized by CD/MD electric hoist design, to ensure the standard and interchangeability of components, greatly improve product quality and reduce product maintenance costs
5, the machine structure is compact, the balance weight is made of steel plate, beautiful appearance, but also reduce the size of the machine
6. The whole machine is composed of a host, a bearing beam, and an electric trolley. The whole structure is easy to disassemble, install, maintain, and maintain

It is suitable for mechanical processing, assembly, warehouse and other material transfer places, especially for the place where the height of the plant is limited
