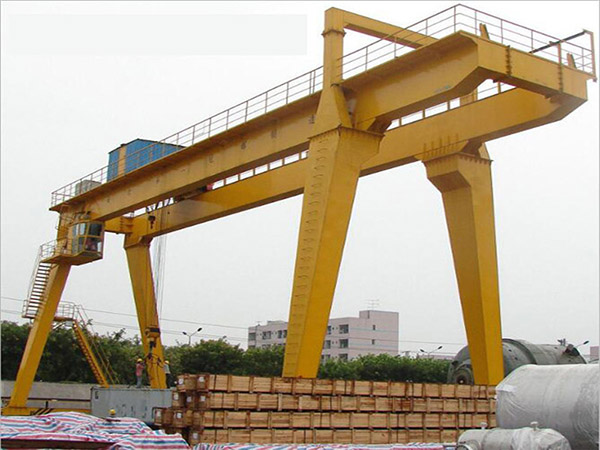

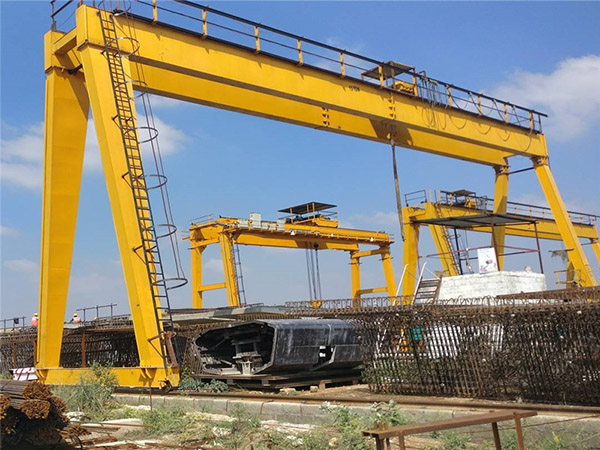

Type A electric double beam gantry crane
A type electric hoist double beam gantry crane (commonly known as: gantry crane, double beam gantry crane, gantry crane) adopts the hoist type double beam gantry crane, the electric hoist adopts the form of CDI, MDI, etc., and the big car running mechanism adopts the three-in-one drive device. Its applicable weight is 3t-32t, the applicable span is 5-50 meters, and the working ambient temperature is in the range of -25-+40℃.

Product characteristics
1, the machine light weight, small wheel pressure, reliable performance.
2, the car adopts compact structure, hard gear reducer, rolling pulley, welding drum, small size, light weight.
3, increase the working range of the hook, improve production efficiency.
4, the mechanism adopts direct connection type, reduce the transmission link, reduce the number of failures, improve the transmission efficiency, reduce the energy consumption of the crane.
5, the operating mechanism adopts three-in-one deceleration motor, frequency conversion speed regulation, smooth braking without impact.
6, 65Mn forged wheels, wheels wear, long service life.
7, option functions: anti-swing function, vertical lifting function, remote control function, automatic, semi-automatic control function.
It is suitable for general loading, unloading and lifting and lifting work in open yard.
