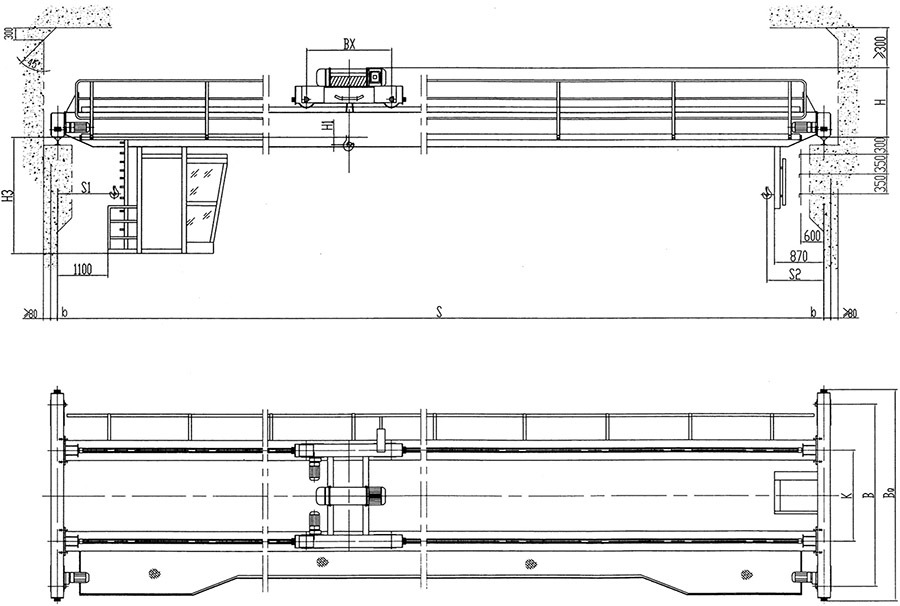

LH type electric double beam crane

It is mainly composed of double main beam, beam device, running trolley, electric hoist or special lifting mechanism, limiting device and control system. With CD1, MD1 and other forms of electric hoist supporting the use, to become a rail operation of light and small double-beam crane, its applicable weight is 3-32t, the national standard range of applicable span of 7.5-22.5 meters, working level A3~A5, the working environment temperature in the range of -25℃ ~ +40℃.

Product characteristics

1. Configure emergency stop switch, short circuit protection, voltage loss protection, phase sequence protection and other functions;

2. Lifting, car, car three independent control, can run alone or at the same time;

3. All connections are quick plug type heavy aviation plug and socket, sealed well, firmly inserted, easy to maintain;

4. The plug connection part is protected by plastic sleeve insulation;

5. The mobile power supply system adopts PVC flat cable dedicated to the crane, and the pressure rating reaches 450/750V;

6. The trolley mobile power supply system adopts built-in cable block, galvanized track and flat cable.

7. Overload limiter;

8. Upper and lower limit switch;

Suitable for use

It is mostly used in machinery manufacturing production, assembly workshop workpiece assembly and transfer and other places.
