HC electric hoist

Product introduction Shell: Aluminum alloy shell, solid and light. Characteristic heat sink, fast heat dissipation, continuous use, efficiency up to 40%. Integral closed structure, can be used in chemical plants, electroplating plants and other places. Pound magnetic brake: ...

Message

National hotline

400-966-5869

Product details / Product

Product introduction

Shell: Aluminum alloy shell, solid and light. Characteristic heat sink, fast heat dissipation, continuous use, efficiency up to 40%. Integral closed structure, can be used in chemical plants, electroplating plants and other places.

Pound magnetic brake: A newly designed magnetic generator, which is characterized by magnetic production. It can brake at the same time when the power is cut off to ensure that the brake is absolutely safe when lifting the weight. Limit switch: there are limit switch devices for lifting and lifting, which can automatically stop, prevent chain from exceeding and ensure safety.

Chain: imported FEC80 super heating treatment alloy steel chain. Safe to use in rain, seawater, chemicals and other harsh conditions. Hook: hot forged, excellent strength, not easy to break. The lower hook can be rotated 360*, with a safety tongue to ensure safe operation. Support frame: The weight support frame is composed of two steel plates and is very strong.

Transformer: 24V/36V transformer. When operating, the leakage can prevent accidents, and when it rains, it can ensure safe use. Electromagnetic contactor: High efficiency electromagnetic contactor, can be used at high frequencies, no problem.

Reverse phase protection device: special wire device, when the power connection is wrong, the control circuit cannot operate.

Push button switch: Use waterproof push button switch.

Product parameters

HC, HM series electric hoist technical performance and dimensions (16T-80T)
Model				HC HM
Lifting weight	tons			16T											20T
Lifting height	m			9	12	16	18	20	24	30	35	40	45	48	9	12	16	18	20	24
Lifting speed	m/min			3.5(3.5/0.35)											(3.5/0.3) (4/0.4)
Running speed	m/min			20											20
Wire Rope	Rope diameter	mm		17.5											20
	Wire diameter	mm		0.7											0.9
	Structure form			6×37+1											6×37+1
I-beam track Model (GB76-88)				50a-63c											50a-63c
Minimum radius of ring track		m		3				3.5			4.6				3		3.5		4.6
Lifting motor	Model			ZDX62-6 (ZD52-4)											ZDX62-6 (ZD52-4)
	Capacity	kW		13 13/1.5											18.5 18.5/3.0
	Speed	RPM		920(1400)											920(1400)
	Number of phases			3											3
	Voltage	Volts		380											380
	Current	Amperes		40											40
	Frequency	weeks/second		50											50
Run the motor	Model			ZDY22-4(ZDY21-4)											ZDY21-4
	Capacity	kW		0.8×2											0.8×4
	Speed	RPM		1380											1380
	Number of phases			3											3
	Voltage	Volts		380											380
	Current	Amperes		2.4×2											2.4×2
	Frequency	weeks/second		50											50
Job Type and organization level				Intermediate M3											Light M6

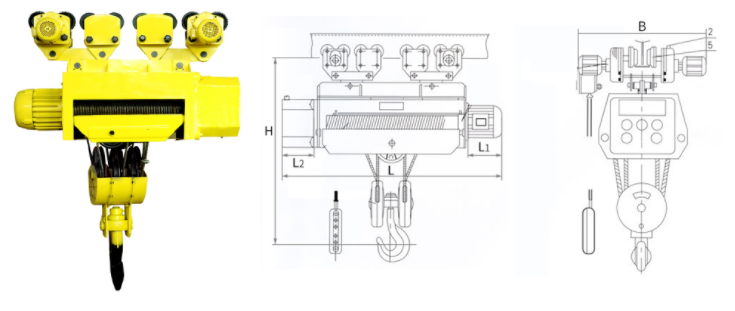

Base Size ±2%	H		mm	1650											3385
	L1			470											470
	L2			396.5											396.5
	L	C		1685	1794	1938	2010	2083	2227	2444	2625	2800	2986	3094	1920	2038	2280	2368	2500	2720
		M		1700	1809	1953	2025	2098	2242	2459	2640	2815	3001	3109	1935	2053	2295	2383	2515	2735
	m			895	1004	1148	1120	1293	1437	1654	1835	2010	2116	2304	1130	1248	1490	1578	1710	1930
	n			400											400
	h			435											435
	φ			37											37
	B			1058											1058
	E			2265											2265
	F			637											860
Total ±15%	C		kg	1985	2150	2200	2320	2400	2510	2550	2650	2850	3030	3160	2450	2950	3156	3356	3500	3750
	M			2185	2350	2400	2500	2600	2720	2850	2930	3050	3210	3330	2750	3250	3456	3656	3800	4050
	C solid			1635	1760	1890	2030	2100	2230	2420	2540	2650	2410	2930	1950	2450	2656	2856	3000	3250
	M solid			1835	1960	2090	2230	2340	2430	2600	2700	2850	2910	3000	2250	2750	2956	3156	3300	3550

HC, HM series electric hoist technical performance and dimensions (16T-80T)
Model				HC HM
Lifting weight	tons			25T						32T						50T						80T
Lifting height	m			9	12	16	18	20	24	9	12	16	18	20	24	9	12	16	18	20	24	9	12	16	18	20	24
Lifting speed	m/min			2.4/0.24 (3/0.3)						2.4/0.24 (3/0.3)						2.4/0.24						2.4/0.24
Running speed	m/min			20
Wire Rope	Rope diameter	mm		20						26						26						26
	Wire diameter	mm		0.9						1.7						1.7						1.7
	Structure form			6×37+1						6×19+1						6×19+1						6×19+1
I-beam track Model (GB76-88)				50a-63c						50a-63c
Minimum radius of ring track		m		3		3.5		4.6
Lifting motor	Model			ZDX62-6 (ZD52-4)						ZDX62-6						ZDX62-6						ZDX62-6
	Capacity	kW		18.5 18.5/3.0						18.5 18.5/3.0						18.5 18.5/3.0						18.5 18.5/2.0
	Speed	RPM		920(1400)						920						920						920
	Number of phases			3						3						3						3
	Voltage	Volts		380						380						380						380
	Current	Amperes		40						40						40						40
	Frequency	weeks/second		50						50						50						50
Run the motor	Model			ZDY21-4						ZDY21-4
	Capacity	kW		0.8×4						1.5×4
	Speed	RPM		1380						1380
	Number of phases			3						3
	Voltage	Volts		380						380
	Current	Amperes		2.4×2						2.4×2
	Frequency	weeks/second		50						50
Job Type and organization level				Light M6						Light grade M3						Light grade M3						Light grade M3
Base Size ±2%	H		mm	3385
	L1			470						470						470						470
	L2			396.5						396.5						396.5						396.5
	L	C		2060	2280	2412	2566	2830	3116	2048	2264	2553	2697	2842	3131	2300	2571	2932	3113	3293	3654	2300	2571	2932	3113	3293	3654
		M		2075	2295	2427	2581	2845	3131	2063	2279	2568	2712	2857	3146	2315	2586	2947	3128	3308	3669	2315	2586	2947	3128	3308	3669
	m			1270	1490	1622	1776	2040	2326	1258	1474	1763	1907	2050	2341	1510	1781	2142	2323	2503	2864	1510	1781	2142	2323	2503	2864
	n			400						400						400						400
	h			435						435						435						435
	φ			37						50						50						50
	B			1058
	E			2265						2265						2265						2265
	F			980						860						980						980
Total ±15%	C		kilogram	2600	2800	3000	3300	3500	3900	3200	3406	3712	3918	4124	4330
	M			2900	3100	3300	3600	3800	4200	3500	3706	4012	4218	4421	4630
	C solid			2100	2300	2500	2800	3000	3400	2600	2806	3112	3318	3524	3730	5460	5920	6380	6820	7280	7860	5460	5920	6380	6820	7280	7860
	M solid			2400	1600	2800	3100	3300	3700	2900	3006	3312	3518	3724	3930	5860	6320	6780	7220	7680	8266	5860	6320	6780	7220	7680	8266
