Product Introduction

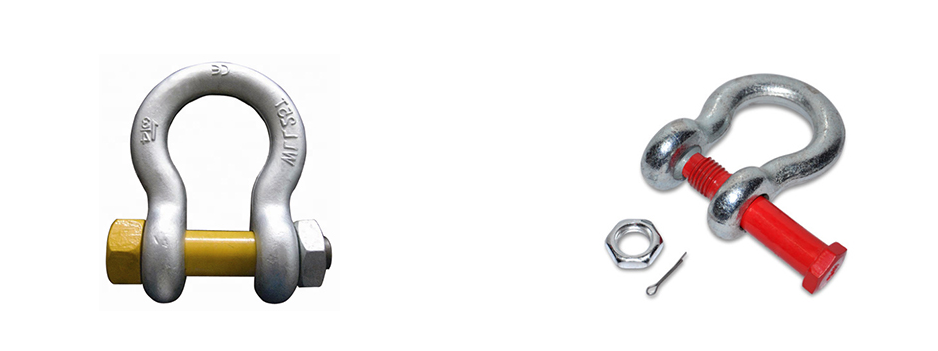

Bow shaped shackle (G2130) is a commonly used type of shackle, and its surface can be painted, painted, electroplated, or hot-dip plated according to requirements. The specifications of the bow shaped shackle are 100T-1000T, and it can also be customized according to your usage requirements.
| Product model | Rated load (T) | A(mm） | B（mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) |
| SL-BX3.25-5/8 | 3.25 | 27 | 20 | 61 | Φ16 | 43 | 38 | 75 |
| SL-BX4.75-3/4 | 4.75 | 32.0 | 22.00 | 71.5 | Φ19 | 51 | 46 | 89 |
| SL-BX6.5-7/8 | 6.5 | 37.0 | 25.0 | 84 | Φ22.5 | 58 | 53 | 103 |
| SL-BX8.5-1 | 8.5 | 43.0 | 28 | 95 | Φ22.5 | 68 | 61 | 119 |
| SL-BX9.5-1/8 | 9.5 | 48.0 | 32.0 | 108 | Φ29 | 74 | 69 | 134 |
| SL-BX12-1 1/4 | 12 | 50.0 | 36.0 | 119 | Φ32 | 81 | 76 | 145 |
| SL-BX13.5-1 3/8 | 13.5 | 55 | 38 | 133 | Φ35 | 90 | 84 | 160 |
| SL-BX17-1 1/2 | 17 | 60.5 | 42.00 | 146 | Φ38 | 97 | 92 | 173 |
| SL-BX25-1 3/4 | 25 | 73.0 | 50.0 | 178 | Φ44.5 | 127 | 107 | 316 |
| SL-BX35-2 | 35 | 83.0 | 56 | 197 | Φ51 | 146 | 122 | 248 |
| SL-BX55-2 1/2 | 55 | 103.0 | 70.0 | 267 | Φ63 | 181 | 145 | 307 |
