Product Introduction

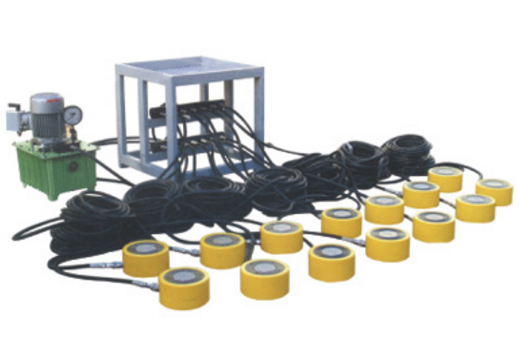

The synchronous jack is designed with a safety and pressure maintaining device, and is equipped with a built-in pressure relief valve to prevent overload, to protect the weighing item and facilitate safe operation. And design four sets of load stop valves, which can control the synchronous lifting and lowering of the jack at any time.
If you need a large tonnage and large stroke jack, please choose TDYG large tonnage synchronous jack. Special jacks can be customized (according to customer requirements)
| Model | Tonnage T | Travel B-Amm | Body height Amm | Extension height Bmm | Cylinder area cm2, oil capacity cm3 | Outer diameter mm | Weight KG | |
| TRSM-50 | 5 | 6 | 33 | 39 | 6.4 | 4 | 64×52 | 1 |
| TRSM-100 | 10 | 11 | 43 | 54 | 14.5 | 16 | 63×66 | 1.4 |
| TRSM-200 | 20 | 11 | 52 | 63 | 28.6 | 31 | 100×84 | 3.1 |
| TRSM-300 | 30 | 13 | 59 | 72 | 42 | 55 | 128×105 | 4.5 |
| TRSM-500 | 50 | 16 | 67 | 83 | 62.1 | 99 | 145×128 | 6.8 |
| TRSM-750 | 75 | 16 | 80 | 96 | 102.7 | 164 | 188×158 | 11.4 |
| TRSM-1000 | 100 | 16 | 86 | 102 | 126.8 | 203 | 208×195% | 14.5 |
| TRSM-1500 | 150 | 16 | 100 | 116 | 198.1 | 277 | 250×220 | 26.3 |
