Product Introduction The QF type separated hydraulic jack is a product developed by our factory with many years of experience. It has the characteristics of large output force, light weight, and can be operated remotely at any spatial position. Coupled with our ultra-high pressu...
400-966-5869
Product Introduction

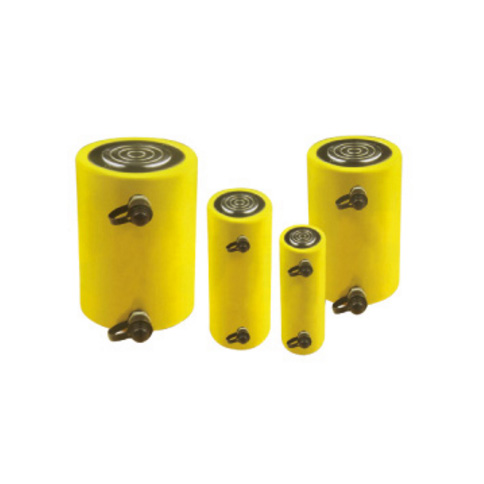

The QF type separated hydraulic jack is a product developed by our factory with many years of experience. It has the characteristics of large output force, light weight, and can be operated remotely at any spatial position. Coupled with our ultra-high pressure oil pump station, it can achieve various forms of operations such as pushing, pulling, squeezing, and pressing. It is widely used in various industries such as transportation, railways, bridges, shipbuilding, construction, factories, and mines. In recent years, it has been widely used in foundation settlement tests and static pile pressing
Project | Lifting capacity | Lifting height | Zui low altitude | Interface spacing | Interface to ground distance | Outer diameter of oil cylinder | Piston rod diameter | Inner diameter of oil cylinder | Installation | Screw hole | Work pressure | Weight |
Model | T | L | L1 | L2 | L3 | D | D1 | D2 | Circumference | Diameter | MPa | (kg) |
QF50T-12.5b | 50 | 125 | 263 | 157 | 41 | 132 | 70 | 100 | 70 | M16 | 62.4 | 23.4 |
QF50T-16b | 50 | 160 | 298 | 192 | 41 | 132 | 70 | 100 | 70 | M16 | 62.4 | 25.4 |
QF50T-20b | 50 | 200 | 338 | 232 | 41 | 132 | 70 | 100 | 70 | M16 | 62.4 | 31.1 |
QF100T-12.5b | 100 | 125 | 291 | 159 | 54 | 172 | 100 | 140 | 110 | N20 | 63.7 | 44.6 |
QF100T-16b | 100 | 160 | 326 | 194 | 54 | 172 | 100 | 140 | 110 | M20 | 63.7 | 49.3 |
QF100T-20b | 100 | 200 | 366 | 234 | 54 | 172 | 100 | 140 | 110 | M20 | 63.7 | 54.76 |
QF200T-12.5b | 200 | 125 | 321 | 160 | 64 | 244 | 100 | 200 | 160 | M24 | 62.4 | 99 |
QF200T-16b | 200 | 160 | 356 | 195 | 64 | 244 | 150 | 200 | 160 | M24 | 62.4 | 107.6 |
QF200T-20b | 200 | 200 | 396 | 235 | 64 | 244 | 150 | 200 | 160 | M24 | 62.4 | 118.4 |
QF320T-20b | 320 | 200 | 427 | 242 | 74 | 315 | 150 | 250 | 200 | M24 | 63.9 | 213.1 |
QF500T-20b | 500 | 200 | 475 | 254 | 93 | 395 | 180 | 320 | 280 | M24 | 60.9 | 393.1 |
QF630T-20b | 630 | 200 | 536 | 266 | 115 | 450 | 250 | 360 | 300 | M24 | 60.7 | 579.9 |
QF800T-20b | 800 | 200 | 577 | 294 | 113 | 550 | 320 | 400 | 380 | M24 | 62.4 | 106.8 |
QF1000T-20b | 1000 | 200 | 620 | 300 | 110 | 600 | 360 | 450 | 450 | M24 | 61.6 | 1200 |
