Product introduction
Shell: Aluminum alloy shell, solid and light. Characteristic heat sink, fast heat dissipation, continuous use, efficiency up to 40%. Integral closed structure, can be used in chemical plants, electroplating plants and other places.
Pound magnetic brake: Newly designed magnetic generator, which is characterized by magnetic production. It can brake at the same time when the power is cut off to ensure that the brake is absolutely safe when lifting the weight. Limit switch: there are limit switch devices for lifting and lifting to automatically stop. Prevent chain overshoot to ensure safety.
Chain: Using imported FEC80 super heating treatment alloy steel chain, it is safe to use in rainwater seawater chemicals and other harsh conditions. Hook: hot forged, excellent strength, not easy to break. The lower hook can be rotated 360°, with a safety tongue to ensure safe operation. Support frame: The weight support frame is composed of two steel plates and is very strong.
Transformer: 24V/36V transformer. When operating, the leakage can prevent accidents, and when it rains, it can ensure safe use. Electromagnetic contactor: High efficiency electromagnetic contactor, can be used at high frequencies, no problem.
Reverse phase protection device: special wire device, when the power connection is wrong, the control circuit cannot operate.
Push-button switch: Use waterproof push-button switch, lightweight and durable.

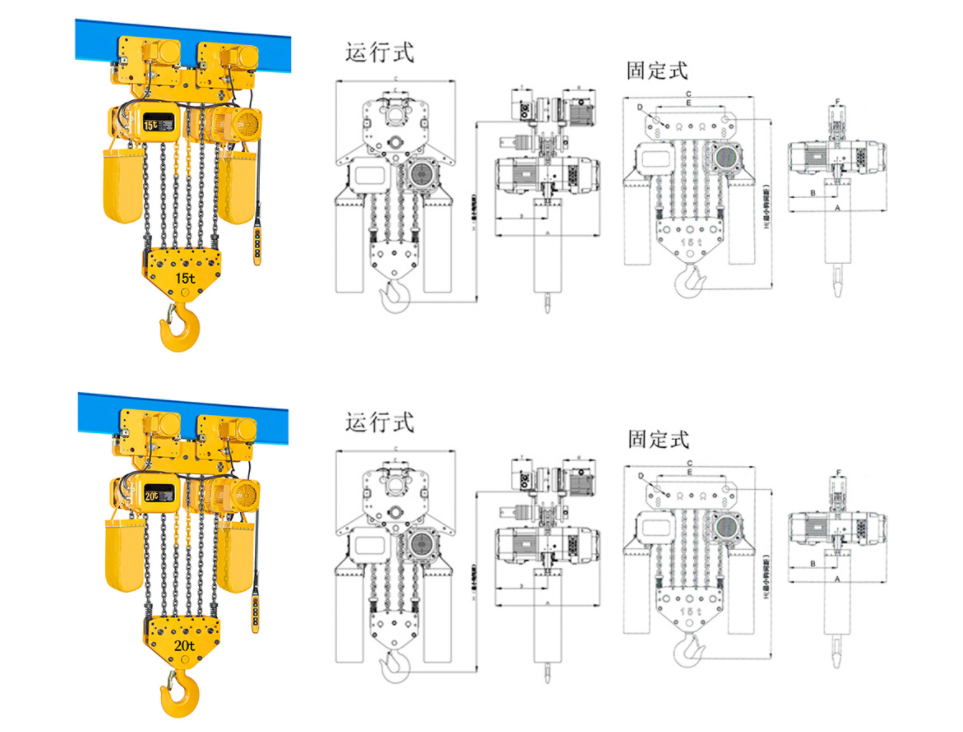

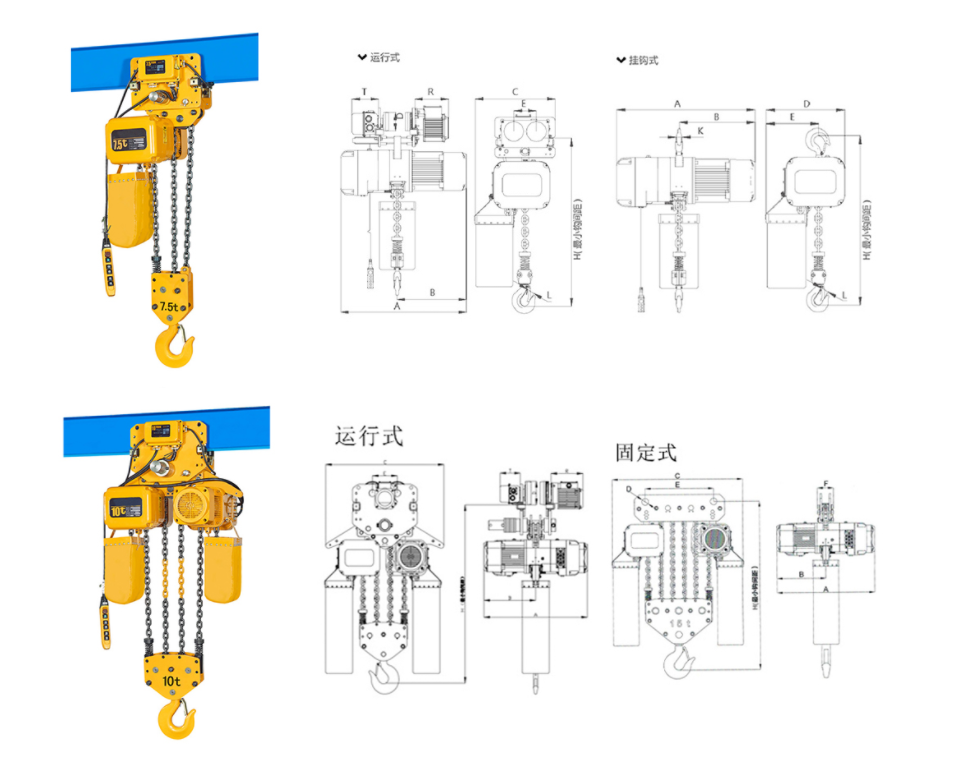

Running chain electric hoist (7.5T-50T) Size parameters: | ||||||||
Model number | H | A | B | C | D | E | R | T |
SKD7.5-3 | 1015 | 745 | 410 | 610 | 140 | 156 | 246 | 156 |
SKD10-4 | 1050 | 800 | 400 | 915 | 175 | 191 | 246 | 156 |
SKD15-6 | 1200 | 800 | 400 | 1000 | 140 | 156 | 246 | 156 |
SKD20-8 | 1320 | 800 | 400 | 1280 | 175 | 191 | 246 | 156 |
SKD25-10 | 1320 | 800 | 400 | 1280 | 175 | 191 | 246 | 156 |

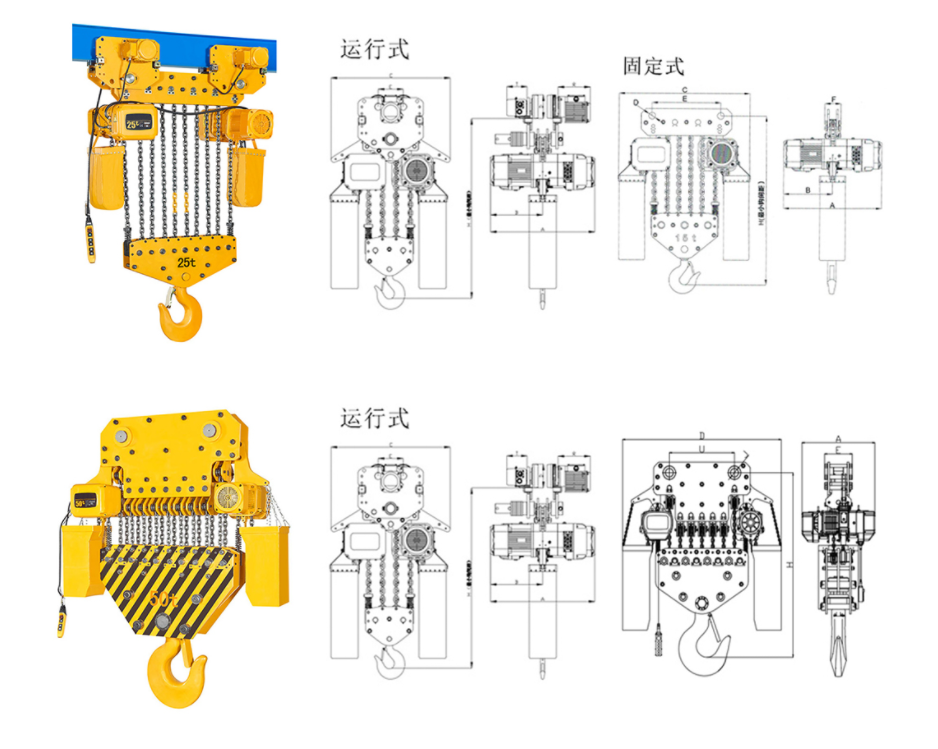

Running chain electric hoist (30T-50T) Size parameters: | ||||||
Model number | H | A | D | E | U | J |
SKD30-12 | 1720 | 870 | 1400 | 280 | 500 | 70 |
SKD40-16 | 1810 | 870 | 1600 | 280 | 600 | 80 |
SKD50-20 | 1970 | 870 | 1815 | 280 | 760 | 96 |
Running chain electric hoist (7.5T-50T) Technical parameters: | ||||||||
Model | SK Single speed/Two speed | |||||||
7.5-50T | 7.5-3 | 10-4 | 15-6 | 20-8 | 25-10 | 30-12 | 40-16 | 50-20 |
Rated load(t) | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
Lifting speed(m/min) | 2.2 | 3.3 | 2.2 | 1.65 | 1.3 | 1.1 | 0.83 | 0.66 |
Motor power(KW) | 3.0 | 3.0×2 | 3.0×2 | 3.0×2 | 3.0×2 | 3.0×2 | 3.0×2 | 3.0×2 |
Rotational speed(r/min) | 1400 | 1440 | 1440 | 1440 | 1440 | 1400 | 1400 | 1400 |
Motor insulation class | Grade F | |||||||
Operating voltage | 3-PHASE 380v 50HZ | |||||||
Control voltage | 24v/36v/48v | |||||||
Chain cycle | 3 | 4 | 6 | 8 | 10 | 12 | 16 | 20 |
Chain specification | Φ11.2 | Φ11.2 | Φ11.2 | Φ11.2 | Φ11.2 | Φ11.2 | Φ11.2 | Φ11.2 |
