Product introduction

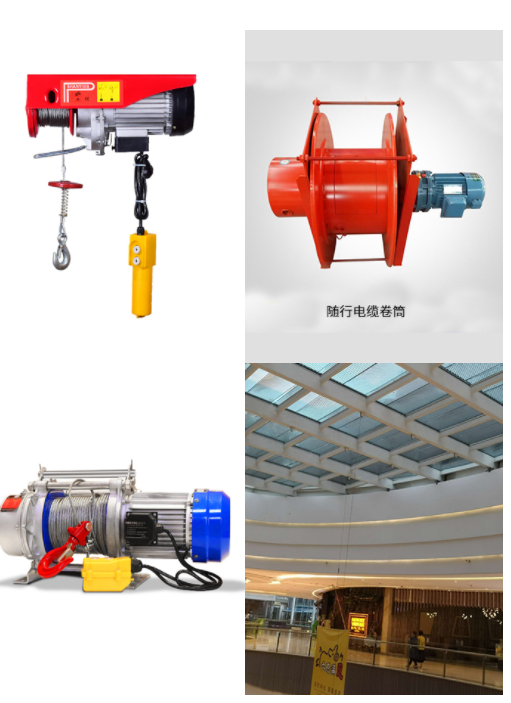

Shopping malls with electric elevator: Now every shopping mall will basically use shopping mall advertising hooks, and these advertising hooks are mostly installed on the edge of the mall atrium, through the guide wheel to guide the wire rope in the past and then hang the hook, so that when you need to replace the banner, you can put down the hook to replace the banner as long as you gently press.
Shopping mall electric advertising hook is produced by international standards, with reasonable design, advanced structure, beautiful appearance and other characteristics, in terms of safety protection is also very high, the motor radiator adopts cast iron structure, improve the service life. Product characteristics
1, mechanical travel: for each product specially developed travel, so that customers safe use.
2, control system: Our products use the live point function of the control system, using wired control mode, to give you the operation space.
3, motor specifications: motor all use copper core. The pure copper wire motor is more durable, the resistance is small, the heat is low in use, and it is not easy to burn the motor, and the welding can be naturally fused, protecting the connection point of the power line, thus improving the service life of the motor, and it is more safe and reliable, and the pure copper wire motor is more silent.
4, system: super quiet deceleration system, high transmission efficiency, low noise, compact structure, omit the intermediate shaft, square appearance, easier to install and fix. 5, the limit device: with a mechanical limit device, when the limit plate meets the limit device, the lifting machine automatically stops the operation.
Product Model | Lifting weight (kg) |
Lifting height (m) |
Lifting speed (m/min) |
Rated input power (w) |
Rated voltage (V) |
Rated frequency (Hz) |
Net weight (kg) |
Matching capacitance (uf) |
Wire rope diameter (mm) |
PA200 | 100/200 | 12/6 | 10/5 | 510 | 220 | 50 | 11 | 16 | 3 |
PA300 | 150/300 | 12/6 | 10/5 | 600 | 220 | 50 | 11.5 | 20 | 3 |
PA400 | 200/400 | 12/6 | 10/5 | 980 | 220 | 50 | 16 | 30 | 4 |
PA500 | 250/500 | 12/6 | 10/5 | 1020 | 220 | 50 | 16 | 35 | 4 |
PA600 | 300/600 | 12/6 | 10/5 | 1200 | 220 | 50 | 17 | 40 | 4.5 |
PA800 | 400/800 | 12/6 | 10/5 | 1300 | 220 | 50 | 18.5 | 45 | 5 |
PA1000 | 500/1000 | 12/6 | 8/4 | 1600 | 220 | 50 | 31 | 70 | 6 |
Model | How to use | Rated weight (kg) | Lifting height (m) | Lifting speed (m/min) | Rated voltage (v) | Power (kw) |
Fast 500-1000 | Single rope | 300 | 1-100 | 24 | 380V/50HZ | 1.7 |
Double rope | 600 | 1-100 | 12 | |||
Fast 500-1000 | Single rope | 300 | 1-100 | 28 | 220V/50HZ | 3.0 |
Double rope | 600 | 1-100 | 14 | |||
Fast 600-1200 | Single rope | 350 | 1-100 | 24 | 380V/50HZ | 2.2 |
Double rope | 700 | 1-100 | 12 | |||
Fast 600-1200 | Single rope | 350 | 1-100 | 24 | 220V/50HZ | 3.0 |
Double rope | 700 | 1-100 | 12 | |||
Fast 750-1500 | Single rope | 400 | 1-100 | 24 | 220V/50HZ | 4.0 |
Double rope | 800 | 1-100 | 12 | |||
Common 500-1000 | Single rope | 500 | 1-100 | 16 | 380V/50HZ | 1.7 |
Double rope | 1000 | 1-100 | 8 | |||
Common 500-1000 | Single rope | 500 | 1-100 | 16 | 220V/50HZ | 3.0 |
Double rope | 1000 | 1-100 | 8 | |||
Common 500-1000 | Single rope | 500 | 1-100 | 14 | 380V/50HZ | 2.2 |
Double rope | 1200 | 1-100 | 7 | |||
Common 600-1200 | Single rope | 500 | 1-100 | 14 | 220V/50HZ | 3.0 |
Double rope | 1200 | 1-100 | 7 | |||
Common 750-1500 | Single rope | 750 | 1-100 | 14 | 220V/50HZ | 4.0 |
Double rope | 1500 | 1-100 | 7 |
