Product introduction Variable frequency electric hoist is the use of frequency converter to make the power frequency change. To control the speed of the motor. Variable frequency electric hoist has the following characteristics: it can reduce the impact when starting and stoppin...
400-966-5869
Product introduction
Variable frequency electric hoist is the use of frequency converter to make the power frequency change. To control the speed of the motor. Variable frequency electric hoist has the following characteristics: it can reduce the impact when starting and stopping
Because the electric hoist has the performance of smooth operation, it can reduce the impact when starting and stopping, especially suitable for the working environment where vibration is not allowed. Lifting speed can be set according to demand
The lifting speed can be set between 1:5 rated speed and rated speed to select the most suitable operating speed. Can improve work efficiency
Under no load, the lifting speed can be set between the rated speed and 1:5 times the rated speed to improve the operating speed under no load. To improve work efficiency. It can easily set the running speed of the car
The running motor stage can be controlled by frequency converter, which can conveniently make the running motor run at a low speed, improve the accuracy of the running positioning, and can also be point-and-click operation.

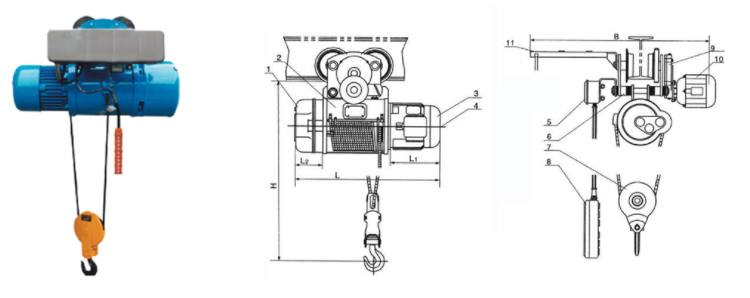

BPCD, BPMD series electric hoist technical performance and dimensions (0.25T-20T) | |||||||||||||||||||||||||||
Model | BPCD1 BPMD1 | ||||||||||||||||||||||||||
Lifting weight | tons | 0.25 | 0.5 | 1 | 2 | 3 | |||||||||||||||||||||
Lifting height | m | 3 | 6 | 9 | 6 | 9 | 12 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | ||
Lifting speed | m/min | 8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | |||||||||||||||||||||
Running speed | m/min | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) | |||||||||||||||||||||
Wire Rope | Rope diameter | mm | 3.6 | 4.8 | 7.4 | 11 | 13 | ||||||||||||||||||||
Wire diameter | mm | 0.22 | 0.34 | 0.5 | 0.6 | ||||||||||||||||||||||
Structure form | 6×9 | D-6×37+1 | D-6×37+1 | D-6×37+1 | D-6×37+1 | ||||||||||||||||||||||
I-beam track Model (GB76-88) | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | ||||||||||||||||||||||
Minimum radius of ring track | m | 0.8 | 1.5 | 1.5 | 2 | 3 | 4 | 2 | 2.5 | 3 | 4 | 2 | 2.5 | 3 | 4 | ||||||||||||
Lifting motor | Model | ZD12-4 | ZD21-4 | ZD21-4 | ZD31-4 | ZD41-4 | |||||||||||||||||||||
Capacity | kW | 0.4 | 0.8 0.2/0.8 | ||||||||||||||||||||||||
Speed | RPM | 1380 | 1380 | 1380 | 1380 | 1380 | |||||||||||||||||||||
Number of phases | 3 | 3 | 3 | 3 | 3 | ||||||||||||||||||||||
Voltage | Volts | 380 | 380 | 380 | 380 | 380 | |||||||||||||||||||||
Current | Amperes | 1.25 | 2.4 0.72/2.4 | 4.3 0.72/4.3 | 7.6 1.25/7.6 | 11 2.4/11 | |||||||||||||||||||||
Frequency | weeks/second | 50 | 50 | 50 | 50 | 50 | |||||||||||||||||||||
Run the motor | Model | DW5024 | ZDY11-4 | ZDY12-4 | ZD12-4 | ZDY21-4 | |||||||||||||||||||||
Capacity | kW | 0.06 | 0.2 | 0.2 | 0.4 | 0.4 | |||||||||||||||||||||
Speed | RPM | 1400 | 1380 | 1380 | 1380 | 1380 | |||||||||||||||||||||
Number of phases | 3 | 3 | 3 | 3 | 3 | ||||||||||||||||||||||
Voltage | Volts | 380 | 380 | 380 | 380 | 380 | |||||||||||||||||||||
Current | Amperes | 0.3 | 0.72 | 0.72 | 1.25 | 1.25 | |||||||||||||||||||||
Frequency | weeks/second | 50 | 50 | 50 | 50 | 50 | |||||||||||||||||||||
Job Type and organization level | Intermediate M3 | Intermediate M3 | Intermediate M3 | Intermediate M3 | Intermediate M3 | ||||||||||||||||||||||
Base Size ±2% | H | Millim | 432 | 630 | 670 | 685 | 780 | 860 | 960 | 985 | 1080 | ||||||||||||||||
L2 | M | 216 | 126 | 159 | 187 | 230 | |||||||||||||||||||||
L1 | 175 | 228/225 | 269/266 | 279 | 341/343 | ||||||||||||||||||||||
L | C | 391 | 616 | 688 | 760 | 758 | 856 | 955 | 1150 | 1346 | 1542 | 820 | 920 | 1020 | 1220 | 1420 | 1620 | 915 | 1018 | 1121 | 1327 | 1533 | 1738 | ||||
M | 638 | 710 | 782 | 780 | 878 | 976 | 1172 | 1368 | 1564 | ||||||||||||||||||
m | 104 | 318 | 390 | 462 | 400 | 499 | 597 | 793 | 989 | 1185 | 418 | 518 | 618 | 818 | 1018 | 1218 | 448 | 551 | 654 | 860 | 1066 | 1272 | |||||
n | 130 | 190 | 196 | 240 | 264 | ||||||||||||||||||||||
h | 120 | 124 | 155 | 173 | |||||||||||||||||||||||
φ | 16.5 | 16.5 | 19 | 25 | 25 | ||||||||||||||||||||||
B | 279-315 | -884 | -884 | -930 | -930 | ||||||||||||||||||||||
E | 395 | 490 | 584 | 740 | 848 | ||||||||||||||||||||||
F | 355/426 | 354/492 | 400/562 | 438/642 | |||||||||||||||||||||||
Total ±15% | C | Public | 44 | 44.4 | 44.8 | 120 | 125 | 145 | 145 | 158 | 180 | 195 | 208 | 222 | 235 | 248 | 296 | 320 | 340 | 360 | 280 | 300 | 350 | 380 | 405 | 435 | |
M | Catty | 135 | 140 | 160 | 160 | 170 | 200 | 210 | 220 | 230 | 265 | 278 | 326 | 350 | 370 | 310 | 310 | 330 | 380 | 410 | 435 | 465 | |||||
C solid | 30 | 30.4 | 30.8 | 80 | 85 | 90 | 120 | 120 | 125 | 140 | 150 | 165 | 168 | 180 | 190 | 210 | 230 | 250 | 220 | 235 | 250 | 275 | 300 | 325 | |||
M solid | 100 | 105 | 110 | 130 | 140 | 145 | 155 | 165 | 180 | 196 | 210 | 220 | 240 | 260 | 280 | 250 | 265 | 280 | 305 | 330 | 355 |
BPCD, BPMD series electric hoist technical performance and dimensions (0.25T-20T) | ||||||||||||||
Model | BPCD1 | BPMD1 | ||||||||||||
Lifting weight | tons | 5 | 10 | |||||||||||
Lifting height | m | 6 | 9 | 12 | 18 | 24 | 30 | 9 | 12 | 18 | 24 | 30 | ||
Lifting speed | m/min | 8/0.8 | 7/0.7 | |||||||||||
Running speed | m/min | 20(30) | 20(30) | |||||||||||
Wire Rope | Rope diameter | mm | 15 | 15 | ||||||||||
Wire diameter | mm | 0.7 | 0.7 | |||||||||||
Structure form | D-6×37+1 | D-6×37+1 | ||||||||||||
I-beam track Model (GB76-88) | 25a-63c | 25a-63c | ||||||||||||
Minimum radius of ring track | m | 2.5 | 3 | 4 | 5 | 2.5 | 3.5 | 4 | 6 | 9 | ||||
Lifting motor | Model | ZD41-4 | ZD51-4 | |||||||||||
Capacity | kW | |||||||||||||
Speed | RPM | 1380 | 1380 | |||||||||||
Number of phases | 3 | 3 | ||||||||||||
Voltage | Volts | 380 | 380 | |||||||||||
Current | Amperes | 18 2.4/18 | 30 4.3/30 | |||||||||||
Frequency | weeks/second | 50 | 50 | |||||||||||
Run the motor | Model | ZDY21-4 | ZDY21-4 | |||||||||||
Capacity | kW | 0.8 | 0.8×2 | |||||||||||
Speed | RPM | 1380 | 1380 | |||||||||||
Number of phases | 3 | 3 | ||||||||||||
Voltage | Volts | 380 | 380 | |||||||||||
Current | Amperes | 2.4 | 2.4×2 | |||||||||||
Frequency | weeks/second | 50 | 50 | |||||||||||
Job Type and organization level | Intermediate M3 | Intermediate M3 | ||||||||||||
Base Size ±2% | H | Millim | 1160 | 1310 | 1350 | |||||||||
L2 | M | 274 | 303 | |||||||||||
L1 | 380/377 | 429/820 | ||||||||||||
L | C | 1047 | 1157 | 1257 | 1467 | 1677 | 1887 | 1602 | 1783 | 2145 | 2507 | 1869 | ||
M | 1059 | 1169 | 1269 | 1479 | 1682 | 1899 | 1969 | 2150 | 2512 | 2874 | 3236 | |||
m | 485 | 606 | 695 | 860 | 1115 | 1325 | 949 | 1130 | 1492 | 1854 | 2216 | |||
n | 320 | 376 | ||||||||||||
h | 203 | 243 | ||||||||||||
φ | 31 | 37 | ||||||||||||
B | -1058 | -1058 | ||||||||||||
E | 998 | 1068 | ||||||||||||
F | 472/675 | 612 | ||||||||||||
Total ±15% | C | Public | 445 | 470 | 555 | 590 | 630 | 670 | 1010 | 1063 | 1166 | 1263 | 1317 | |
M | Catty | 480 | 505 | 590 | 630 | 660 | 705 | 1100 | 1153 | 1256 | 1353 | 1407 | ||
C solid | 355 | 375 | 390 | 425 | 460 | 500 | 759 | 807 | 900 | 987 | 1032 | |||
M solid | 390 | 410 | 425 | 460 | 500 | 535 | 849 | 897 | 990 | 1077 | 1122 |
BPCD, BPMD series electric hoist technical performance and dimensions (0.25T-20T) | ||||||||||||||||
Model | BPCD | NH20-12D | ||||||||||||||
Lifting weight | tons | 16 | 20 | 20 | 3 | |||||||||||
Lifting height | m | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | |||
Lifting speed | m/min | 3.5 3.5/0.35 | 3.5 3.5/0.35 | 5 | 8/0.8 | |||||||||||
Running speed | m/min | 18 | 20 | 20 | 20(30) | |||||||||||
Wire Rope | Rope diameter | mm | 15 | 17 | 22.5 | 13 | ||||||||||
Wire diameter | mm | 0.7 | 0.8 | 0.6 | ||||||||||||
Structure form | D-6×37+1 | D-6×37+1 | D-6×37+1 | D-6×37+1 | ||||||||||||
I-beam track Model (GB76-88) | 45a-63c | 50a-63c | 20a-32c | |||||||||||||
Minimum radius of ring track | m | 3 | 3.5 | 4.6 | 3 | 3.5 | 4.6 | 2 | 2.5 | 3 | 4 | |||||
Lifting motor | Model | ZD51-4 | ZD51-4 | ZD41-4 | ||||||||||||
Capacity | kW | |||||||||||||||
Speed | RPM | 1380 | 1380 | 1380 | 1380 | |||||||||||
Number of phases | 3 | 3 | 3 | 3 | ||||||||||||
Voltage | Volts | 380 | 380 | 380 | 380 | |||||||||||
Current | Amperes | 30 4.3/30 | 30 4.3/30 | 11 2.4/11 | ||||||||||||
Frequency | weeks/second | 50 | 50 | 50 | 50 | |||||||||||
Run the motor | Model | ZDY21-4 | ZDY21-4 | ZDY21-4 | ||||||||||||
Capacity | kW | 0.8×2 | 0.8×2 | 0.8 x 2 | 0.4 | |||||||||||
Speed | RPM | 1380 | 1380 | 1380 | 1380 | |||||||||||
Number of phases | 3 | 3 | 3 | 3 | ||||||||||||
Voltage | Volts | 380 | 380 | 380 | 380 | |||||||||||
Current | Amperes | 2.4×2 | 2.4×2 | 2.4 x 2 | 1.25 | |||||||||||
Frequency | weeks/second | 50 | 50 | 50 | 50 | |||||||||||
Job Type and organization level | Intermediate M2 | Intermediate M2 | Intermediate M3 | |||||||||||||
Base Size ±2% | H | Millim | 1600 | 2400 | 985 | 1080 | ||||||||||
L2 | M | Same as 10t | 230 | |||||||||||||
L1 | Same as 10t | 341/343 | ||||||||||||||
L | C | Same as 10t | 915 | 1018 | 1121 | 1327 | 1533 | 1738 | ||||||||
M | ||||||||||||||||
m | 949 | 1130 | 1492 | 956 | 1478 | 1605 | 448 | 551 | 654 | 860 | 1066 | 1272 | ||||
n | 376 | 376 | 264 | |||||||||||||
h | 41 | 46 | 173 | |||||||||||||
φ | 25 | |||||||||||||||
B | -930 | |||||||||||||||
E | 1335 | 1934 | 848 | |||||||||||||
F | 1055 | 438/642 | ||||||||||||||
Total ±15% | C | Public | 280 | 300 | 350 | 380 | 405 | 435 | ||||||||
M | Catty | 310 | 330 | 380 | 410 | 435 | 465 | |||||||||
C solid | 220 | 235 | 250 | 275 | 300 | 325 | ||||||||||
M solid | 250 | 265 | 280 | 305 | 330 | 355 |
