Product introduction Advantages: KSY type electric hoist has the characteristics of compact structure, light weight, small size, easy operation, easy maintenance, etc. It can be installed separately on the overhead I-beam, and can also be installed on the electric or manual sing...
400-966-5869
Product introduction
Advantages: KSY type electric hoist has the characteristics of compact structure, light weight, small size, easy operation, easy maintenance, etc. It can be installed separately on the overhead I-beam, and can also be installed on the electric or manual single beam, double beam, suspension bone, gantry crane. Therefore, KSY type electric hoist is factory, mine, port, warehouse. The Goods Yard. Shops and other commonly used lifting equipment is one of the necessary machinery to improve labor efficiency and improve working conditions.

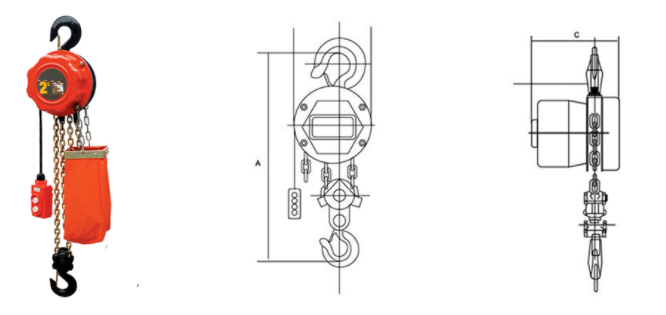

Electric chain hoist is a kind of light and small material handling lifting equipment. The electric ring hoist is mainly composed of a motor, a transmission mechanism and a sprocket. Shanghai Hugong lifting chain electric hoist with beautiful appearance, durable, international technology and so on. The inner gear of the electric hoist with the chain is hot quenched to increase the wear resistance and toughness of the gear.
Chain electric hoists are widely used for lifting heavy objects or mounting on single beam cranes, linear curved beams, and can also be used for double beam cranes, hoist gantry cranes or cantilever cranes. It is a kind of light lifting equipment, which is welcomed by industrial enterprises, railways, wharves and warehouses.
Type specification | KSY1 | KSY2 | KSY3 | KSY5 | KSY10 |
Rated lifting weight t | 1 | 2 | 3 | 5 | 10 |
Test load t | 1.25 | 2.5 | 4 | 6.25 | 12.5 |
Power source | 380/50HZ | ||||
Motor power kw | 0.5 | 0.8 | 1.1 | 1.1 | 1.8 |
Lifting speed m/min | 3 | 3 | 3 | 2 | 1 |
Minimum distance between two structuresmm | 600 | 600 | 800 | 800 | 1000 |
Standard lifting height m | 3 | ||||
Net weight kg | 42 | 50 | 55 | 55 | 120 |
Increase the weight with each additional 1MKG | 0.82 | 1.7 | 2.9 | 2.9 | 8.84 |
