Product introduction The explosion-proof copper chain electric hoist is made of aluminum bronze and beryllium bronze as blanks, and the shell of the explosion-proof copper chain electric hoist is made of H62 copper alloy material. The rotating gear has been heat treated at high ...
400-966-5869
Product introduction
The explosion-proof copper chain electric hoist is made of aluminum bronze and beryllium bronze as blanks, and the shell of the explosion-proof copper chain electric hoist is made of H62 copper alloy material. The rotating gear has been heat treated at high temperature to achieve high wear resistance of the gear. In the operation of the product friction impact will not produce mechanical sparks, in flammable and explosive places do not detonate gas, effectively prevent fire accidents.
Explosion-proof copper chain electric hoist working principle:
Using star deceleration, disk motor, smooth operation, accurate and safe braking, suitable for a variety of clean, flammable and explosive working space.
Explosion-proof copper chain electric hoist is a kind of electric lifting machinery, easy to use, easy to carry, light weight, easy to carry, beautiful appearance, small size, durable.
Explosion-proof copper chain electric hoist can be used with explosion-proof electric monorail car to form an electric lifting transport car, explosion-proof copper chain electric hoist can be widely used in petroleum, petrochemical, oil station, oil depot, gas production, chemical industry, military, electric power, mining, electronics, railway, and other potential fire and explosion dangerous environment. In the operation of the product friction impact will produce mechanical sparks, effectively prevent fire accidents, to ensure the safety of national property and personal safety. It is also an indispensable special tool for machinery manufacturing and machinery maintenance.
Rated weight (kg) |
Lifting speed (m/min) |
Lifting height (m) |
Motor Model | Motor power (w) |
Motor speed (r/min) |
Power supply voltage (v) |

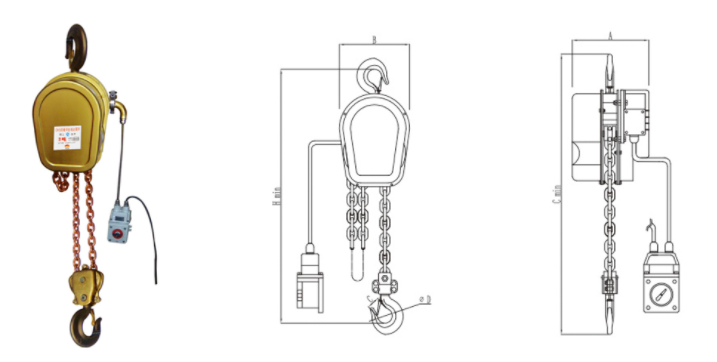

Dimensions (mm) |
Machine weight (kg) |
||||
A | B | Hmin | C | D | 3m | |||||||
1000 | 2.25 | 3-9 | YHPE500-4 | 500 | 1380 | 380 | 280 | 275 | 520 | 580 | 43 | 40 |
2000 | 1.85 | 3-9 | YHPE500-4 | 500 | 1380 | 380 | 280 | 275 | 600 | 630 | 50 | 43 |
3000 | 1.1 | 3-6 | YHPE750-4 | 750 | 1380 | 380 | 280 | 275 | 680 | 780 | 63 | 50 |
5000 | 0.9 | 3-6 | YHPE750-4 | 750 | 1380 | 380 | 280 | 275 | 710 | 820 | 65 | 70 |
7500 | 0.6 | 6-9 | YHPE750-4 | 750 | 1380 | 380 | 280 | 340 | 850 | 970 | 72 | 72 |
10000 | 0.45 | 6-9 | YHPE750-4 | 750 | 1380 | 380 | 280 | 358 | 900 | 1050 | 77 | 107 |
