Product Introduction

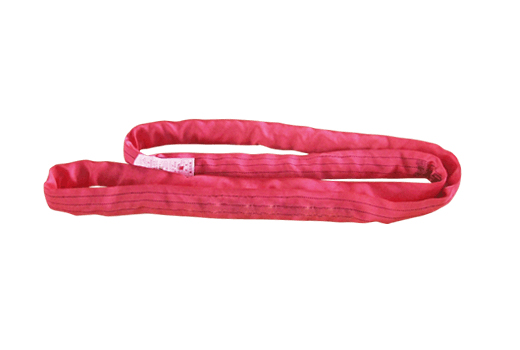

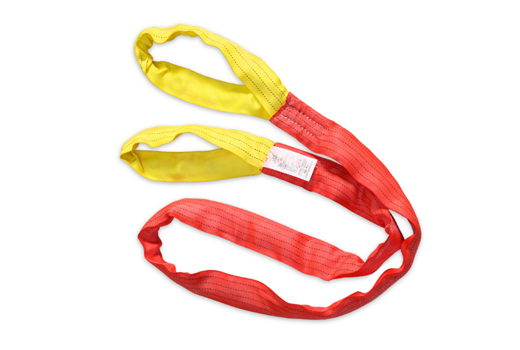

The four shaped lifting belt can carry a large load of up to 300 tons, with an effective length of up to 80 meters. The safety factor is generally 7:1.6:1. The lifting belt of Guokai is made of high-strength polyimide industrial filament (100% 0PES), and the inner bearing core is wrapped endlessly to form a circular shape. The outer part is protected by a stress free sleeve composed of 100% 6PES. Special advantages of the V-shaped lifting belt:
1. Especially suitable for lifting circular objects.
2. The outer surface of the lifting belt is fine, which may cause damage to vulnerable objects. 3. There are many lifting methods, which can also be used to lift and pull the lifted object.
The lifting belt is subjected to uniform force, resulting in a longer working life of the lifting belt and a higher strength to weight ratio
6. Wear resistant and anti cutting protective sleeves can be added.
7. It has a unique label and uses international standard colors to distinguish the load-bearing tonnage, making it easy to recognize even when lifting and grinding. 8. Lightweight and soft, easy to use even in small spaces. 9. Non conductive, no contact danger.
10. Complies with the European standard EN14821; 200 and Chinese industry standard 1B/7821-1997.11. The elastic elongation of lifting belts is less than 7%. The temperature range used is -40’C -100 “C.
